Tangent Theta TT735P 7-35x56mm FFP Riflescope - 36mm, JTAC Reticle, 0.1 MRAD (800106-0010)

TANGENT THETA

$6,354.00
(No reviews yet) Write a Review
SKU:
U-666595531512
UPC:
666595531512
Weight:
3.82 LBS
Magnification:
7-35x
Objective:
56mm
Tube Diameter:
36mm
Focal Plane:
First (FFP)
Reticle:
JTAC
Click Value:
0.1 MRAD
Elevation Travel:
30 MRAD total / 28 MRAD working
Parallax:
10 m to infinity
Illumination:
LED, 11 settings
Length:
405mm (15.9 in)
Weight:
1230 g (43.4 oz)
Made In:
Canada
Adding to cart… The item has been added

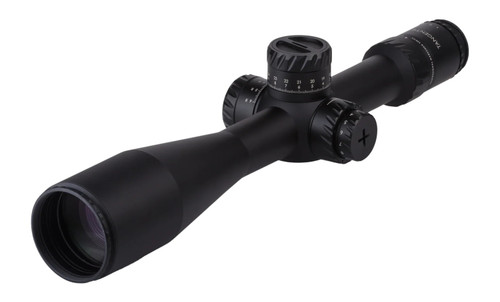

The Tangent Theta TT735P 7-35x56mm with the JTAC reticle is a first focal plane competition and extreme-range scope for shooters who want to see their bullet trace and impacts through an uncluttered view. It is the highest-magnification model in the current Tangent Theta line, yet the company says it is 24mm shorter than the company's 25x models. The 36mm one-piece tube carries 30 mrad of total elevation, and the side focus brings targets into sharp focus from 10 meters out to infinity. Every dial click is 0.1 mrad, matched to the reticle's mrad subtensions.

Part number 800106-0010 is the JTAC version of the TT735P. Its siblings, 800106-0008 (Horus Tremor3) and 800106-0011 (Gen 3 XR Fine), share the same optics, turrets and housing. The JTAC uses a fine center dot for small targets and labeled subtensions so you don't have to count lines. The area above the horizontal stadia is left open to help you follow trace. Tangent Theta also kept the etching to a minimum, so the view stays clear before, during and after recoil, and it designed this reticle specifically for competition.

Key features

  • JTAC competition reticle: fine center dot, labeled holds and an open upper field for spotting trace and splash.
  • 35x top end: more magnification for identifying targets at extreme range, with an 8mm exit pupil at 7x.
  • Tool-free zeroing: the TOOL-LESS RE-ZERO system resets both dials by hand after you confirm zero.
  • Rev indicator and zero stop: a pin rises on the second elevation turn, and the zero stop lets you return quickly to your zero.
  • Left-side control dial: parallax from 10 m to infinity, plus 11-setting LED illumination with an off detent between each setting.
  • Ready to run: ships with Tenebraex lens covers and a KillFlash anti-reflection device.

Specifications

Manufacturer part #800106-0010
UPC666595531512
ModelTT735P 7-35x56mm
ReticleJTAC (FFP, mrad, illuminated)
Magnification7x-35x
Objective56mm
Focal planeFirst focal plane (FFP)
Tube diameter36mm
Click value0.1 mrad
Elevation travel30 mrad total / 28 mrad working (two turns, zero stop)
Windage travel14 mrad total / +/- 6 mrad working
Parallax10 m to infinity, side focus
IlluminationLED, 11 settings, 6-hour auto shut-off
BatteryDL2032 3V lithium
Field of view3.1 deg (5.41 m @ 100 m) at 7x; 0.62 deg (1.08 m @ 100 m) at 35x
Eye relief90mm (3.54 in)
Exit pupil8mm at 7x; 1.6mm at 35x
Diopter range-3 to +2.5, lockable
Length405mm (15.9 in)
Weight1230 g (43.4 oz)
FinishType II anodized, matte
Waterproof4 hours at 10 meters
Shockproof1000 g at 10,000 cycles

In the box

  • Tangent Theta TT735P 7-35x56mm riflescope
  • Tenebraex lens covers
  • Tenebraex KillFlash anti-reflection device (ARD)
  • DL2032 battery (installed at the factory)
  • Plastic battery removal disk

Warranty

Tangent Theta covers its riflescopes with a lifetime warranty against manufacturer defect. Warranty and non-warranty repairs are done at the company's Halifax, Nova Scotia facility.
