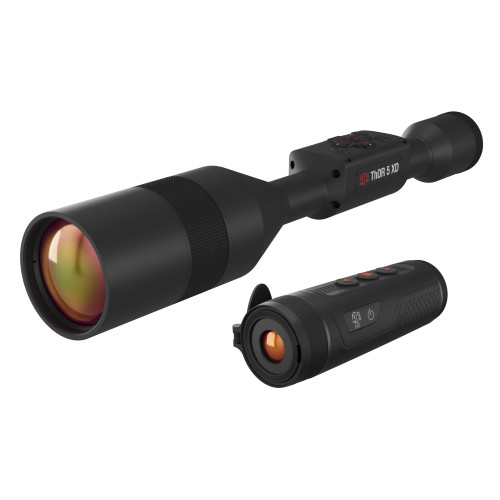

This ATN combo pairs the ThOR 5 XD 3-30x thermal riflescope with a BlazeTrek 619 thermal monocular, a matched scope-and-scanner setup for night hunters. The scope uses a 1280 x 1024, 12 micron, 60 fps sensor behind a 75 mm objective. Its 3x base power and 11.8-degree field of view sit between the wide 2-20x and the long-range 4-40x. The handheld BlazeTrek lets you scan and track game without sweeping the rifle.
The scope in this kit is the ThOR 5 XD (1280 x 1024) 3-30x without a rangefinder, ATN part TIWST51275A. It is the XD model, not the 640 x 512 ThOR 5, which has no 3-30x lens.
Key features
- BlazeTrek 619 thermal monocular included. A 640 x 512, 12 micron handheld viewer with a 19 mm lens, 1.25-10x zoom, OLED display, 6.5-hour battery and IP67 rating for scanning before you shoulder the rifle.
- 1280 x 1024 Gen 5 sensor. A 12 micron, 60 fps thermal core delivers about four times the pixel count of a 640 x 512 scope for more detail at range.
- Ballistic calculator. Enter your load and the reticle shifts for drop; profiles store setups for up to six rifles.
- Smart Mil Dot reticle. Hash-mark spacing adjusts with magnification across the full zoom range, and the Reticle Editor lets you build your own.
- Recording and streaming. Record to microSD while streaming to the ATN app over Wi-Fi; Recoil Activated Video starts recording when you fire.
- 10-hour internal battery. Charges over USB-C, and the same port can run an external power bank for long sits.
- 75 mm objective. 3x base power and an 11.8 x 8.8 degree field of view balance reach and scanning width.
Specifications
| Manufacturer part # (combo) | TIWST51275KBT6 |
|---|---|
| Riflescope part # | TIWST51275A |
| UPC | 658175826644 |
| Model | ATN ThOR 5 XD 3-30x |
| Laser rangefinder | No |
| Thermal sensor | 1280 x 1024, 12 micron pixel pitch, 60 fps |
| Core | ATN Gen V (Obsidian V) quad-core |
| Magnification | 3-30x (3x base, digital smooth zoom to 30x) |
| Objective lens | 75 mm (distributor listing; ATN does not publish focal length) |
| Field of view | 11.8 x 8.8 deg |
| Display | OLED, 1024 x 768 |
| Eye relief | 90 mm |
| Video recording | 1280 x 960 at 60 fps, dual stream (record + stream), Recoil Activated Video |
| Ballistic calculator | Yes |
| Reticles | Smart Mil Dot plus multiple patterns and colors; custom reticles via ATN Reticle Editor |
| Connectivity | Wi-Fi (streaming, gallery, controls; iOS & Android), Bluetooth |
| Sensors | 3D gyroscope, 3D accelerometer, electronic compass |
| Storage | microSD, 4 to 64 GB |
| Battery | Internal rechargeable Li-ion, USB-C; about 7 hr charge with a 2 A USB charger |
| Battery life | 10 hours |
| Mount | 30 mm (ATN lists 30 mm HP QDM) |
| Detection range | 3,600 yd (ATN product page) |
| Weather resistance | Weather resistant (no IP rating published) |
| Operating temperature | -20 F to +120 F (-28 C to +48 C) |
| Dimensions | 15.5 x 2.9 x 2.9 in (395 x 73 x 73 mm) |
| Weight | 3.01 lb (1.36 kg) |
| Warranty | 5 years (registration required) |
| Country of origin | USA |
| BlazeTrek 619 part # | TIMNBLT619 |
| BlazeTrek 619 sensor | 640 x 512, 12 micron, 50 Hz, <25 mK |
| BlazeTrek 619 lens / magnification | 19 mm; 1.25-10x |
| BlazeTrek 619 field of view | 22.8 x 18.3 deg |
| BlazeTrek 619 display | OLED 800 x 600 |
| BlazeTrek 619 battery | Internal rechargeable, about 6.5 hr, USB-C |
| BlazeTrek 619 storage | 16 GB internal; video and photo capture |
| BlazeTrek 619 waterproof | IP67 |
| BlazeTrek 619 weight | 0.7 lb (320 g) |
| BlazeTrek 619 warranty | 3 years |
In the box
- Riflescope
- Scope cover
- Flip-open lens cap
- Eyecup
- USB-C cable
- Lens tissue
- BlazeTrek 619 thermal monocular (TIMNBLT619)
- BlazeTrek cable
- Case
- Eyecup
- Lanyard
- Wristband
- Lens tissue
Warranty
ATN covers the ThOR 5 XD against defects in materials and workmanship for 5 years from the date of purchase. Register the product with ATN to validate coverage. ATN lists a 3-year warranty for the BlazeTrek 619 monocular.
Downloads
US sale only. This thermal imaging device is subject to U.S. export controls. We ship it to U.S. addresses only, and it may not be exported or taken outside the United States.
