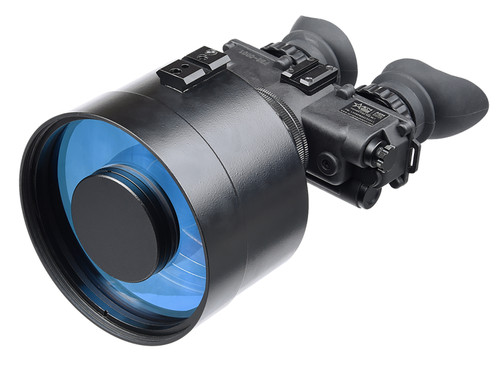

The AGM FoxBat-8 is an 8x night vision bi-ocular for long-range observation from a fixed position, such as watching a field edge, a property line or a perimeter. A 216 mm F/1.8 catadioptric objective gathers light into a single image intensifier tube, and a beam splitter sends the image to two eyepieces. You view with both eyes, which is far less tiring than squinting through a monocular during long sessions. The narrow 4.5° field of view and 8x magnification are aimed at detail at distance rather than walking or scanning up close.
This is the white phosphor 3AW1 version. It uses AGM's Gen 3 "Level 1" auto-gated tube, rated FOM 1400-1800 with P45 white phosphor and practically no visible spots in the center of the image. White phosphor shows the scene in black and white, which many users find easier to read for detail and contrast. AGM also builds the FoxBat-8 with the same Gen 3 Level 1 tube in green (P43) phosphor (3AL1) and in Gen 2+ Level 1 versions (NL1, NW1).
The FoxBat-8 runs up to 40 hours on two AA batteries and has a built-in IR plus a detachable 850 nm long-range illuminator rated to about 200 m. It ships with a tripod, which threads into the 1/4 in socket in the bottom rail.
Key features
- 8x magnification - 216 mm F/1.8 catadioptric objective with a 4.5° field of view for long-range viewing.
- Gen 3 Level 1 tube - auto-gated, FOM 1400-1800, P45 white phosphor, made in the USA.
- Two-eye viewing - single tube with beam splitter, 57-73 mm interpupillary adjustment and individual diopters.
- Long-range IR illuminator - detachable 850 nm, 5 W unit with three power levels and an 18650 rechargeable battery, plus a built-in IR.
- Tube protection - bright-light cut-off and automatic brightness control.
- Long runtime - up to 40 hours on two AA batteries.
- Tripod ready - tripod included, with Picatinny rails top and bottom; IP65 rated.
Specifications
| Manufacturer part # | 13F8P82325401 |
|---|---|
| UPC | 810027773685 |
| Tube option | 3AW1 |
| Device type | Night vision bi-ocular: one image intensifier tube with beam splitter, two eyepieces |
| Image intensifier | Gen 3, auto-gated, "Level 1" grade |
| Figure of merit | FOM 1400-1800 |
| Phosphor | P45 white |
| Cosmetic grade | Level 1: practically no visible spots in Zone 1 (center) |
| Resolution | 64-72 lp/mm (AGM Gen 3 tube range) |
| Tube origin | Made in USA |
| Magnification | 8× |
| Field of view | 4.5° |
| Lens system | 216 mm, F/1.8 catadioptric objective |
| Focus range | 10 m to infinity |
| Diopter adjustment | -5 to +5 dpt |
| Exit pupil | 15 mm |
| Eye relief | 15 mm |
| Interpupillary distance | 57-73 mm |
| Built-in IR | Yes, switched with the OFF-ON-IR function knob |
| Detachable IR illuminator | 850 nm LED, 5 W, up to 200 m, High/Mid/Low, one 18650 rechargeable battery, IP65 |
| Bright-light cut-off | Yes |
| Automatic brightness control | Yes |
| Battery | Two 1.5 V AA batteries |
| Battery life | Up to 40 hours |
| Waterproof rating | IP65 |
| Operating temperature | -40°C to +50°C (-40°F to +122°F) |
| Storage temperature | -50°C to +70°C (-58°F to +158°F) |
| Dimensions | 215 × 155 × 146 mm (8.5 × 6.1 × 5.7 in) |
| Weight | 1.76 kg (3.9 lb) without batteries |
| Mounting | Top Picatinny rail for IR illuminator; 1/4 in tripod socket in the bottom Picatinny rail |
| Warranty | 3 years |
In the box
- Night vision bi-ocular
- Lens cap
- Eyecups (2)
- Neck strap
- Lens cloth
- Long-range infrared illuminator
- USB cable for charging the IR illuminator
- Tripod with adapter
- Hard case for storage/transportation
- User manual
Warranty
AGM Global Vision warrants the FoxBat-8 against manufacturing defects in material and workmanship under normal use for three (3) years from the date of purchase. AGM will repair or replace a covered product at its discretion; the warranty is extended to the original purchaser.
Downloads
US sale only. This night vision device is subject to U.S. export controls. We ship it to U.S. addresses only, and it may not be exported or taken outside the United States.
