The Trijicon Tenmile 4.5-30x56 (TM3056-C-3000013) is a 34 mm, first focal plane long-range riflescope with a red/green illuminated MRAD Precision Tree reticle and 0.1 MRAD turrets, made for precision rifle shooters who range, hold and dial in mils. Trijicon calls the 4.5-30x56 its flagship long-range scope. The exposed elevation adjuster has a zero stop, the side parallax focuses from 20 yards to infinity, and the 34 mm tube gives 29.1 MRAD of elevation travel for long-range dialing.

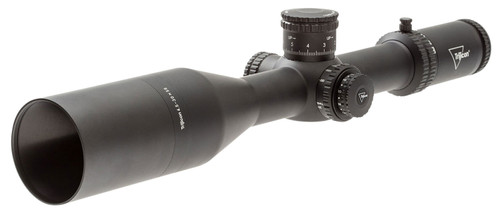

This is the first focal plane MRAD model. Because the Precision Tree sits in the first focal plane, it grows and shrinks with magnification and its mil marks stay true at every power, so holds and ranging work anywhere in the 4.5-30x range. Trijicon also sells this scope as TM3056-C-3000014, a second focal plane model with an MOA Long Range reticle and 1/4 MOA clicks.
Key features
- MRAD Precision Tree (FFP): a mil-hashed crosshair with a holdover tree of wind-hold dots below center, accurate at any magnification.
- 0.1 MRAD clicks: 29.1 MRAD of elevation and 14.5 MRAD of windage travel; the adjusters need no tools.
- Red or green illumination: five red and five green LED settings with an off position between each, on one CR2032.
- Zero-stop elevation: the exposed elevation adjuster returns to your zero without counting turns.
- Parallax from 20 yards: the side focus clears parallax error from 20 yards out to infinity.
- Built to take abuse: hard-anodized 6061 aluminum, dry-nitrogen filled and waterproof to 10 ft (3 m); Trijicon temperature-shock tests from -20°F to 140°F and checks zero over 5,000 rounds.
Specifications
| Manufacturer part # | TM3056-C-3000013 |
|---|---|
| Trijicon item # | 3000013 |
| UPC | 719307403468 |
| Model | Trijicon Tenmile 4.5-30x56 FFP Long-Range Riflescope (TM3056 series) |
| Magnification | 4.5-30x |
| Objective | 56 mm |
| Tube diameter | 34 mm |
| Reticle | MRAD Precision Tree |
| Reticle color | Red / Green (dual illuminated) |
| Focal plane | First (FFP) |
| Illumination | LED, 10 settings (5 red, 5 green) with an off position between each |
| Power source | 1 x CR2032 battery |
| Battery life | Red: 39 hours; green: 94 hours (at a mid-high setting such as 7 of 10) |
| Adjustment | 0.1 MRAD per click |
| Adjustment range | 29.1 MRAD elevation, 14.5 MRAD windage |
| Elevation adjuster | Exposed, with zero stop (return to zero); 1.418 in from top of tube to top of adjuster |
| Parallax adjustment | 20 yd to infinity |
| Eye relief | 3.2 - 3.8 in (81.28 - 96.52 mm) |
| Exit pupil | 0.35 - 0.07 in (8.89 - 1.78 mm) |
| Field of view | 4.7° - 0.7°; 24.7 - 3.7 ft @ 100 yd (8.23 - 1.23 m @ 100 m) |
| Length x width x height | 14.33 x 3.63 x 2.9 in (363.98 x 92.2 x 73.66 mm) |
| Weight | 36 oz (1,020.58 g) |
| Housing | 6061 aircraft-grade aluminum, hard anodized, dry-nitrogen filled |
| Finish | Matte black |
| Waterproof | To 10 ft (3 m) |
| Mount | Not included; uses 34 mm rings |
| Warranty | Lifetime of original owner (optics and metal structure); electronics 5 years from manufacture |
In the box
- Sunshade
- Tenebraex flip caps
- Scopecoat cover
- 3 mm hex key
- 1.5 mm hex key
- Repositionable magnification knob and replacement screw
- 1 CR2032 battery
- Quick reference guide
- Warranty card
- Vinyl logo sticker
Warranty
Trijicon warrants the optical system and metal structure against defects in material and workmanship for the lifetime of the original owner. The LED illumination electronics carry a 5-year warranty from the date of original manufacture.
