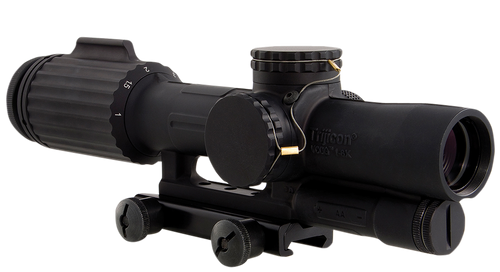

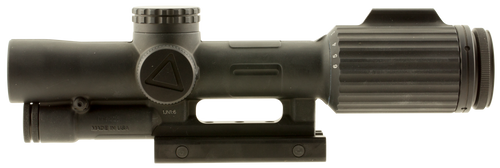

The Trijicon VCOG 1-8x28 is a forged-housing, first-focal-plane combat riflescope that mounts straight to a Picatinny rail, built for patrol, duty and competition rifles that need to work from room distances out to marksman ranges. The housing is forged from 7075-T6 aluminum, tested to MIL-STD-810G and waterproof to 66 ft (20 m). Because the integrated mount attaches the scope directly to the rail, there are no rings to buy, align or torque. The LED reticle runs on a single AA battery, and an integrated dial fin turns the magnification ring without a separate lever.
This listing is the black anodized VC18-C-2400003. It pairs the red segmented circle with a crosshair and center dot graduated in MRAD, matched to 0.1 MRAD turret clicks, and ships on the TA51 thumbscrew flattop mount. VC18-C-2400001 is the MOA counterpart, and Trijicon lists an FDE Cerakote version of the MRAD crosshair dot on a Q-LOC mount as VC18-C-2400021.
Key features
- Segmented circle for speed, dot for precision: the circle frames close targets at 1x like a red dot, and the fine MRAD crosshair and dot take over at higher power. Holds stay true at any magnification.
- Bindon Aiming Concept: the illuminated reticle is built for both-eyes-open shooting at low power.
- 11 brightness settings: 2 night-vision compatible, 8 daylight and 1 super-bright, with an off position between each setting.
- AA power: one lithium or alkaline AA; Trijicon rates 633 hours (26.4 days) of continuous use at setting 6 on lithium.
- MRAD adjusters: 0.1 MRAD per click with 35 MRAD of adjustment range, set without tools.
- Near-constant eye relief: 4.0 to 3.9 in. across the full 1-8x range, so your cheek weld does not change with magnification.
- No rings needed: TA51 thumbscrew flattop mount included, compatible with rails that fit the Trijicon ACOG.
Specifications
| Manufacturer part # | VC18-C-2400003 |
|---|---|
| UPC | 719307313101 |
| Magnification | 1-8x |
| Objective | 28 mm |
| Focal plane | First (FFP) |
| Reticle | Red segmented circle / MRAD crosshair dot |
| Illumination | LED, red; 11 settings (2 NV, 8 day, 1 super-bright) |
| Power | (1) AA lithium or alkaline (lithium included) |
| Battery life | 633 hours (26.4 days) at setting 6 |
| Click value | 0.1 MRAD |
| Adjustment range | 35 MRAD |
| Eye relief | 4.0-3.9 in. (101.6-99.06 mm) |
| Exit pupil | 0.40-0.14 in. (10.16-3.56 mm) |
| Field of view @ 100 yd | 109.2-13.1 ft (20.0-2.5 degrees) |
| Dimensions (L x W x H) | 10.8 x 2.8 x 2.8 in. (274.3 x 71.1 x 71.1 mm) |
| Weight | 31.5 oz (893 g) with battery and mount |
| Mount | TA51 flattop thumbscrew mount, included |
| Housing | Forged 7075-T6 aluminum, matte black |
| Waterproof | 66 ft (20 m) |
| Bullet drop compensating | No |
In the box
- VCOG 1-8x28 riflescope
- Thumbscrew flattop adapter (TA51)
- Lithium AA battery
- LensPen (TA56)
- Trijicon logo sticker (PR15)
- Manual
- Warranty card
Warranty
Trijicon's limited lifetime warranty covers the optical system and metal structure against defects in material and workmanship for the lifetime of the original owner; Trijicon will repair or replace the registered product at its option. The LED illumination electronics are covered for five years from the date of original manufacture. Abuse, accidents and improper service are not covered.
