The Trijicon MRO HD 1x25 (MRO-C-2200052) is a compact red dot sight with a 2.0 MOA dot inside a 68 MOA segmented circle, supplied on Trijicon's full co-witness mount for AR-pattern rifles with backup iron sights. It is made for rifles, carbines and shotguns, and it is meant to be used with both eyes open so you keep track of what is around the target. One ambidextrous control sets brightness and switches between the full circle-dot reticle and the dot alone, and the large 25 mm objective with a tapered light path keeps the view wide with little tube effect.

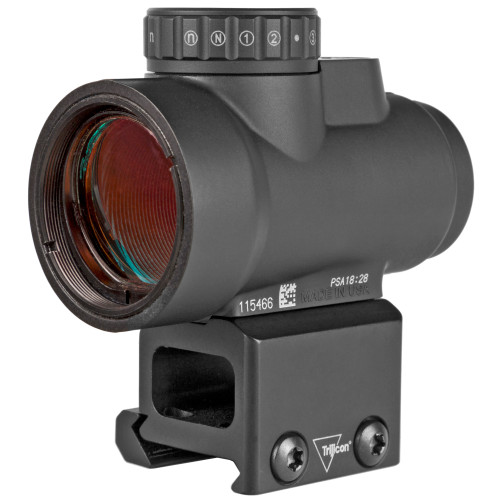

This version ships with the MRO Full Co-Witness Mount (AC32068), a fixed mount that installs with a hex key and puts the optical axis 1.538 in. above the rail (Trijicon item 2200052). At that height the dot sits on the same line as standard AR-height iron sights, so folding or fixed irons appear in the middle of the window as a backup. Trijicon also sells this sight with no mount (2200050), on a low mount (2200051) and on a lower 1/3 co-witness mount (2200053). The HD objective lens is reworked to keep the dot sharp behind a magnifier, and Trijicon packages this same mount with its 3x magnifier as the 2200057 kit.
Key features
- Circle-dot or dot only: a 2.0 MOA dot alone for precise shots, or the dot inside a 68 MOA segmented circle for fast pickup, chosen with the ambidextrous control.
- Full Co-Witness Mount included: Trijicon AC32068, 1.538 in from rail to optical axis, with screws and hex key.
- 16 brightness settings: 8 for each reticle mode, including night vision compatible and super-bright settings, from one CR2032 under a tethered cap.
- Magnifier ready: the re-engineered HD objective keeps the reticle crisp behind a magnifier (not included).
- Capless adjusters: sub-flush 1/2 MOA windage and elevation adjusters with 70 MOA of travel, built to hold zero under drop and recoil.
- Sealed 7075-T6 housing: forged, hard anodized and dry-nitrogen filled, rated to 100 ft (30 m) and -60°F to 160°F.
Specifications
| Manufacturer part # | MRO-C-2200052 |
|---|---|
| Trijicon item # | 2200052 |
| UPC | 719307616028 |
| Model | Trijicon MRO HD 1x25 Red Dot Sight |
| Magnification | 1x |
| Objective | 25 mm |
| Reticle | 2.0 MOA dot with 68 MOA segmented circle; selectable dot only or full reticle |
| Reticle color | Red |
| Illumination | LED, 16 total settings (8 per reticle mode: 2 night vision, 5 day, 1 super-bright) |
| Battery | CR2032; tethered battery cap |
| Battery life | 2.5 years continuous, dot only at day setting 3 (setting 5 of 8) at 70°F; 75 days continuous with full reticle at the same setting |
| Adjustment | 1/2 MOA per click |
| Adjustment range | 70 MOA total travel |
| Eye relief | Unlimited |
| Sight dimensions (L x W x H, without mount) | 2.9 x 1.7 x 2.0 in (73 x 43 x 51 mm) |
| Sight weight (without mount, with battery) | 4.6 oz (130 g) |
| Weight with mount | 6.4 oz (181.44 g) |
| Mount included | Trijicon MRO Full Co-Witness Mount (AC32068), fixed Picatinny mount; not quick-release |
| Mount height (rail to optical axis) | 1.538 in (39.07 mm) |
| Mount weight | 1.68 oz (47.63 g) |
| Housing | Forged 7075-T6 aluminum, hard anodized, sealed and dry-nitrogen filled |
| Finish | Matte black |
| Submersion depth | 100 ft (30 m) |
| Operating temperature | -60°F to 160°F (-51°C to 71°C) |
In the box
- MRO HD 1x25 red dot sight
- Trijicon MRO Full Co-Witness Mount (AC32068) with 4 screws and hex key
- Trijicon logo sticker
- Lens cloth
- MRO manual
- Warranty card
Warranty
Trijicon warrants the optical system and metal structure against defects in material and workmanship for the lifetime of the original owner. The illumination system is excluded from that lifetime coverage; MRO electronics are warranted for five years from the date of original manufacture.
