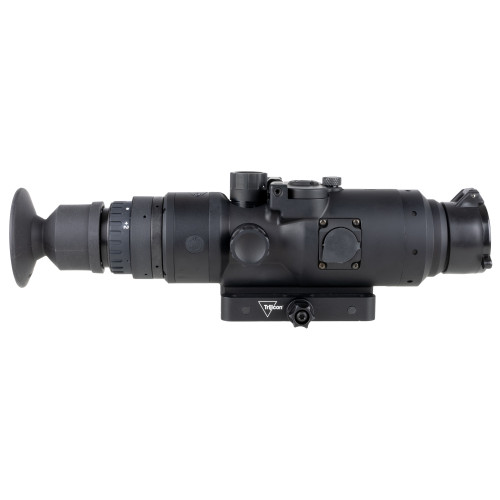

The Trijicon IR-HUNTER 60mm (HUNTER-60-3) is a 3-24x thermal riflescope for hog, predator and varmint hunters who take longer shots at night. Its 640x480, 12-micron vanadium oxide sensor runs at up to 60 Hz behind a manually focused 60mm f/1.2 lens, giving a narrow 7° field of view and 3x base magnification with 1-8x digital zoom. Turret-style dial controls work well with gloves, and the built-in DVR records 640x480 MP4 video to an SD card.
This is the Type 3 (third generation) IR-HUNTER with the 60mm objective, the longest-reach model in the line, compared with the 24mm and 35mm versions. The Type 3 adds the onboard DVR, a USB-C port for external power and video, and a top-loading battery compartment. It ships with a Q-LOC quick-release Picatinny mount.
Key features
- 640x480, 12 µm VOx sensor with under 40 mK thermal sensitivity and 30/60 Hz frame rate
- 3-24x combined magnification from 3x optics and 1-8x digital zoom
- Onboard DVR that records 640x480 MP4 video to an SD card with a single button
- USB-C port for external battery packs and video output to an external recorder
- Five reticles: MRAD and MOA crosshairs plus .223, .308 and 300BLK BDC
- Turret-style rotary controls that are easy to use in the dark or with gloves
- Q-LOC Picatinny mount on a 7075-T6 aluminum housing, made in the USA
Specifications
| Manufacturer part # | HUNTER-60-3 |
|---|---|
| UPC | 719307620506 |
| Model | IR-HUNTER Type 3, 60mm |
| Sensor | 640x480 uncooled VOx, 12 µm pixel pitch |
| Frame rate | 30 Hz / 60 Hz |
| Thermal sensitivity | < 40 mK |
| Spectral response | 8-12 µm |
| Display | OLED |
| Magnification | 3x optical, 1-8x digital, 3-24x combined |
| Objective lens | 60mm f/1.2, manual focus |
| Field of view | 7° horizontal |
| Eye relief | 27mm (1.06 in) |
| Diopter | -6 / +2 |
| Reticles | MRAD, MOA, .223 BDC, .308 BDC, 300BLK BDC; auto-contrast black/white |
| Recording | Onboard DVR, 640x480 MP4 to SD card; 640x480 MJPEG 30 Hz video output via USB-C |
| Power | 2 x CR123 and/or external USB-C |
| Battery life | Approx. 4 hours on 2 x CR123 |
| Operating temperature | -31°F to 122°F (-35°C to 50°C) per product page |
| Submersion | 1 m (3.28 ft) for 1 hour |
| Dimensions (L x W x H) | 9.68 x 3.0 x 3.2 in |
| Weight | 41.48 oz (1,176 g) |
| Housing | 7075-T6 aluminum, matte black anodized |
| Mount | Q-LOC Picatinny rail mount |
| Durability | Designed and tested to MIL-STD-810G; made in USA |
In the box
- IR-HUNTER 60mm thermal riflescope
- Q-LOC Mini Picatinny rail mount
- USB-C to USB-C cable
- 2 x CR123 batteries
- Shuttered eye guard
- Hard case
- LENSPEN
- User manual and quick reference guide
- Warranty card
- Trijicon logo sticker
Downloads
US sale only. This thermal imaging device is subject to U.S. export controls. We ship it to U.S. addresses only, and it may not be exported or taken outside the United States.
