RIX DBH D6 Thermal Riflescope with LRF - 640x512, 60mm, 3-18x, 60 Hz (DBHD6)

RIX OPTICS (VISIR INC)

$5,699.00
(No reviews yet) Write a Review
SKU:
U-850042107669
UPC:
850042107669
Weight:
7.99 LBS
Sensor Resolution:
640 x 512
Pixel Pitch:
12 um
NETD:
20 mK or better
Refresh Rate:
60 Hz
Objective Lens:
60 mm F1.0
Magnification:
3-18x (3x base, digital zoom)
Field of View:
7.3 x 5.8 deg
Laser Rangefinder:
Yes, 1,312 yd
Battery:
2 x 18650, about 8 h
Weight:
2.9 lb
Waterproof:
IP67
Mount:
Picatinny (included)
Adding to cart… The item has been added

The RIX DBH D6 is a 640×512 thermal riflescope with a 60 mm F1.0 objective, built-in laser rangefinder and green laser pointer, aimed at hunters who want rangefinding and ballistic help in one sealed scope. Its 12 µm VOx sensor is rated at 20 mK or better and refreshes at 60 Hz, which keeps moving animals smooth on the 2560×2560 circular OLED. The scope starts at 3x optical magnification and steps digitally to 18x, with a 7.3° × 5.8° field of view. RIX rates detection to 3,280 yards.

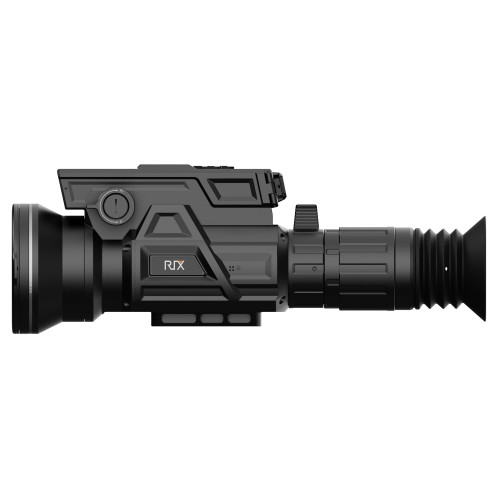

The D6 is the 640-resolution model of the DBH series. Next to the DBH D12, it uses a 640×512 sensor and 60 mm lens instead of 1280×1024 and 75 mm, so its field of view is narrower and the top zoom is 18x rather than 20x. In return it is lighter (2.9 lb vs. 3.47 lb), refreshes faster (60 Hz vs. 50 Hz), runs about an hour longer, and accepts 5 V USB-C external power. Wholesale listings that say "6x zoom" are describing the 6x digital zoom ratio over the 3x base, not the optical power.

Key features

  • 640×512, 60 Hz sensor - 12 µm VOx uncooled core rated at 20 mK or better.
  • 60 mm F1.0 objective - 3x base optical magnification, stepped digital zoom to 18x on a rotating ring.
  • Built-in 905 nm rangefinder - ranges to 1,312 yd (±1.09 yd) and feeds the onboard ballistic calculator; pairs with Kestrel.
  • Green laser pointer - integrated for marking downed game.
  • 2560×2560 circular OLED - picture-in-picture, photo/video, recoil-activated video, 64 GB memory.
  • Wi-Fi and RIX+ app - 2.4 GHz connection for live view and file transfer.
  • Long run time - two 18650 cells give about 8 hours, plus 5 V USB-C external power; IP67 and rated to 1000 g recoil.

Specifications

Manufacturer part #DBHD6 (RIX model name: DBH D6)
UPC850042107669
SensorVOx uncooled, 640 x 512
Pixel pitch12 um
NETD20 mK or better
Frame rate60 Hz
Objective lens60 mm, F1.0
Base (optical) magnification3x
Magnification range3-18x (digital zoom, stepped; 1-6x digital ratio)
Field of view7.3 x 5.8 deg
Eye relief60 mm
Diopter adjustment-5 to +2 D
Detection range3,280 yd
DisplayOLED, 2560 x 2560 (circular)
Laser rangefinder905 nm, max 1,312 yd, +/-1.09 yd
Laser pointerGreen, 515-525 nm, <5 mW (Class 3A)
Wi-Fi2.4 GHz, RIX+ app (iOS/Android)
Recording1280 x 1280 photo/video (.bmp/.mp4), 64 GB built-in memory
Ballistic calculatorYes
Battery2 x 18650 (swappable)
Run timeAbout 8 h at 72 F
External power5 V USB Type-C
Recoil rating1000 g / 6000 J
Waterproof ratingIP67
Operating temperature-4 to 122 F
MountPicatinny mount (included)
Dimensions10.3 x 3.3 x 3.8 in
Weight2.9 lb

In the box

  • DBH thermal imaging riflescope
  • Picatinny mount and 6 screws
  • 4 x 18650 batteries
  • Battery charger
  • USB Type-C cable
  • Eyepiece hood
  • Hex key
  • Lens cloth
  • 10 thermal targets
  • Carry bag

Warranty

RIX backs the DBH D6 with a 5-year manufacturer's warranty.

Downloads

US sale only. This thermal imaging device is subject to U.S. export controls. We ship it to U.S. addresses only, and it may not be exported or taken outside the United States.
